MEMBRALOOP Ultra water filter

€495,00

Tax included

Membraloop® is a flexibly installable water filter for drinking water treatment without electrical energy and without the use of chemicals, through the use of ultrafiltration membranes.

Sold Out
 More payment options

Membraloop Ultra water filter

Description

Characteristics

mark

Membraloop Ultra water filter

Description

Membraloop requires no electrical energy and works solely through the pre-pressure of the existing booster pump (up to 5 bar).

No pump is required for direct refueling.

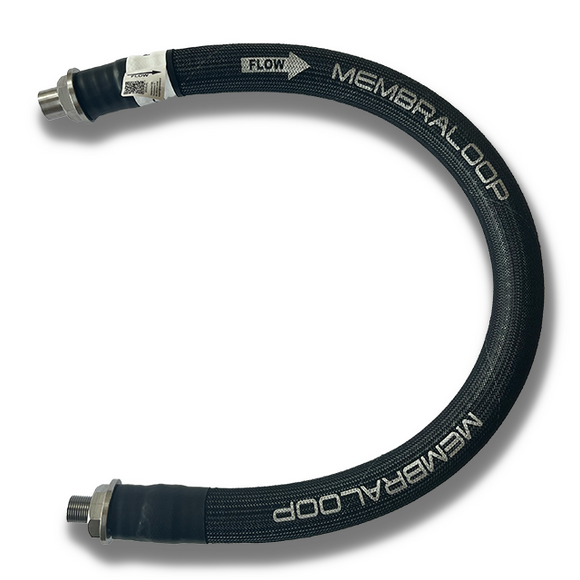

The module consists of a highly flexible hose with integrated ultrafiltration membranes. To produce drinking water, it simply needs to be connected between the booster pump and the consumers. The flexibility of the hose allows installation even in confined spaces. The water to be treated flows from the pump into the module using pre-pressure and is purified by the membrane fibers in the hose. Each module can produce 15 liters of drinking water per minute (depending on pressure, temperature, and raw water).

Membraloop Ultra water filter

Characteristics

Membraloop is an innovative, universally applicable, pre-assembled, and extremely flexible ultrafiltration unit for water and drinking water treatment. Membraloop contains the patented C-MEM™ membrane with an average pore diameter of approximately 0.020 micrometers. This membrane removes particulate matter, bacteria, viruses, legionella, and worm eggs up to 99.9999%. The filter can be connected directly to tap water, wells, springs, or other suitable raw water sources.

Membraloop Ultra water filter

mark

  • Treatment capacity up to 15 l/min (depending on pressure, temperature and raw water composition)
  • C-MEM™ membrane with an average pore diameter of around 0.020 micrometers (50x smaller than Legionella)
  • Flexible filter unit with bending radius < 100 mm
  • Leak testing of the unit according to ASTM D 6908:2006; Standard Practice for Integrity Testing of Water Filtration Membrane Systems
  • Membrane and materials used comply with European Regulation EU No. 10/2011 and No. 1935/2004 for use in drinking water
  • Designed and made in Europe

Technical data

Flow: 5 – 15 l/min
Inlet pressure (water): 1.0 – 5.0 bar
Max. pressure loss: 3.0 bar
Water temperature: 4 – 40°C
Solids content: < 10 mg/l
Dissolved substances: < 1,000 mg/L
Power supply: powerless
Storage conditions: 4 – 40°C, UV and weatherproof

Dimensions

Weight: approx. 2.2 kg
Dimensions (mm): L x D: 1,000 x 45 mm
(Bending radius < 160 mm)
Connections: 1/2" internal thread (raw water)
1/2" external thread (pure water)
